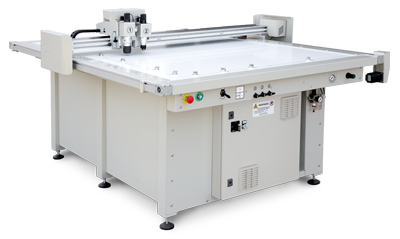

Valiani Optima V AP




The Optima V flatbed cutting plotter, with its high precision, robust mechanics and reasonable starting price, is the answer for all applications in offset/digital printing industries, display and packaging market and apparel and leather industry. Its the ideal solution for short/medium runs of die cutting, prototyping, furnishings creation, textile/cardboard patterns cut and much more.

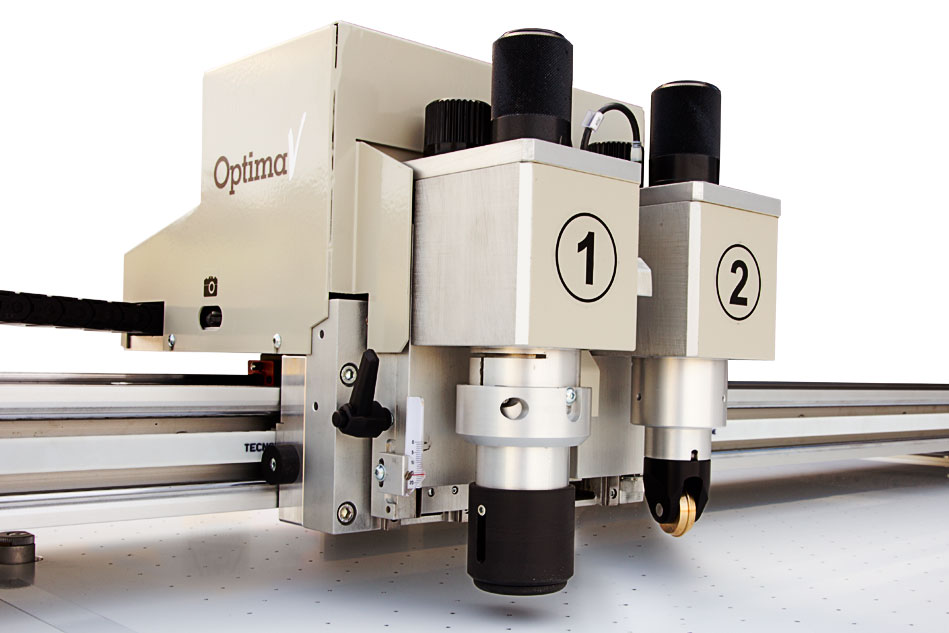

The Optima V is equipped with two independent and modular tool stations that prevent interruption during the work cycle.


The Optima V, with a combined vacuum assisted table and a new fold-away clamping system, provides incomparable working flexibility over a wide range of materials and unparalleled accuracies to meet today’s production challenges.



The Optima V can be used effectively on a wide range of materials:

Rigid material such as vinyl and PVC
Rubber & Crystal Decoration Stickers
Foam-board and Gator-board

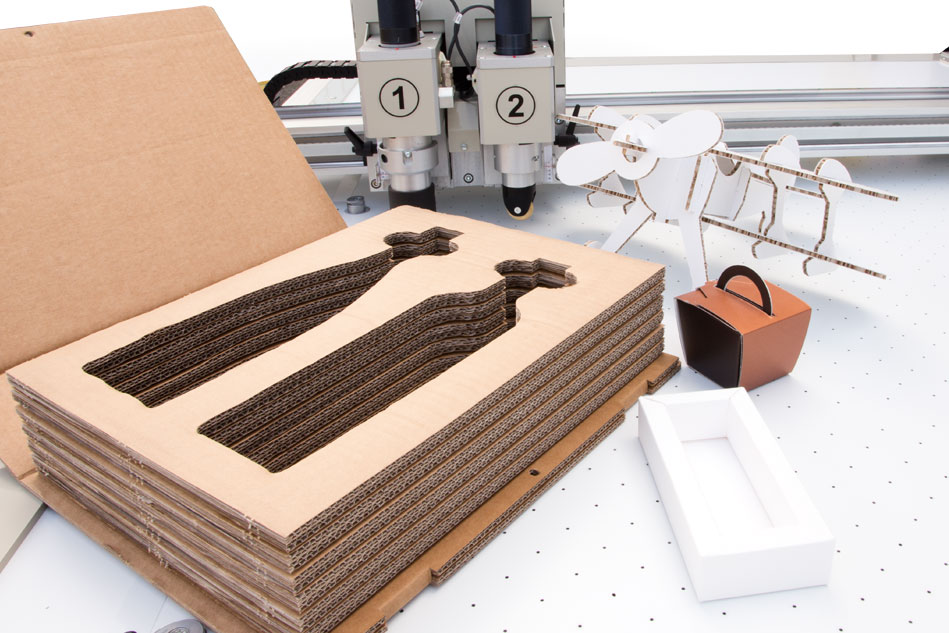

Honeycomb, Corrugated, Folding and Fluted Cardboard
Textiles and Leather
Polymer plates for in-line varnishing, for spot or flood coating

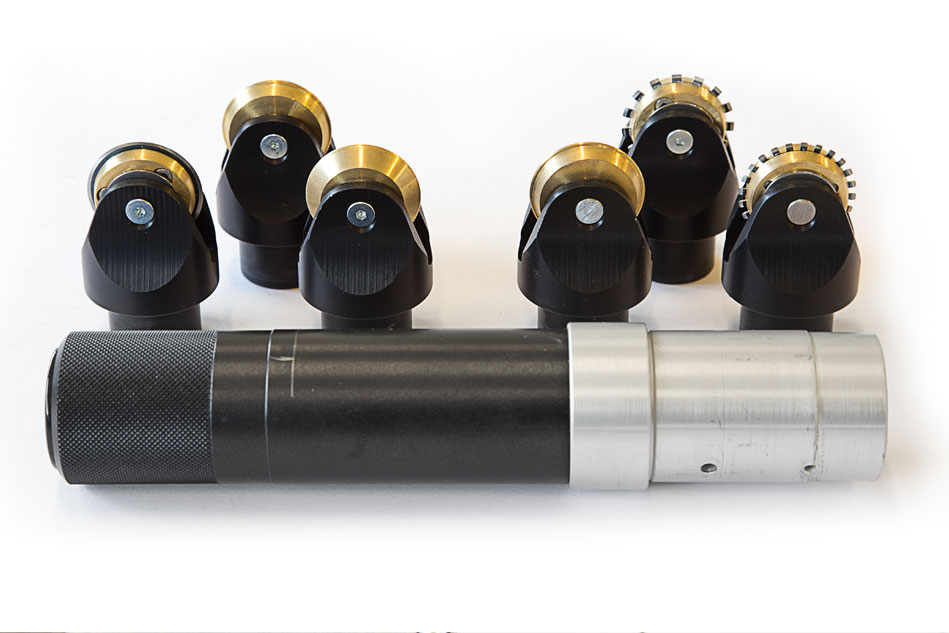

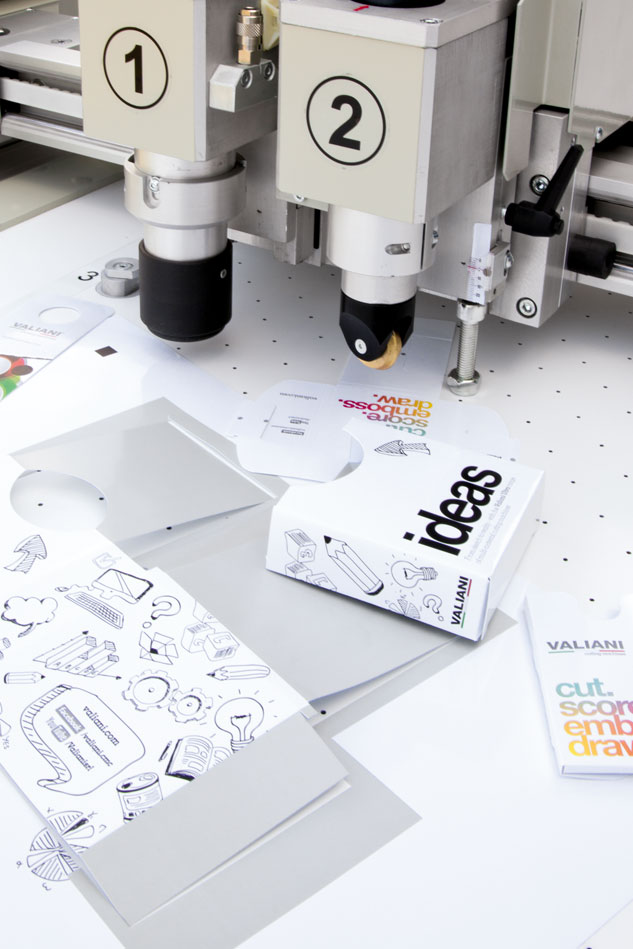

With two configurable tool stations, the Optima V is a medium-format professional cutting plotter capable of: Cutting, Half-cutting and Creasing; Drawing and Oscillating Cutting up to 20 mm (0.78”) in thickness.



The Optima V comes as standard with a camera for crop mark detection. This device, used in combination with optional software OptiCrop, can perform accurate contour cutting and creasing around pre-printed media even with print-distorted materials.

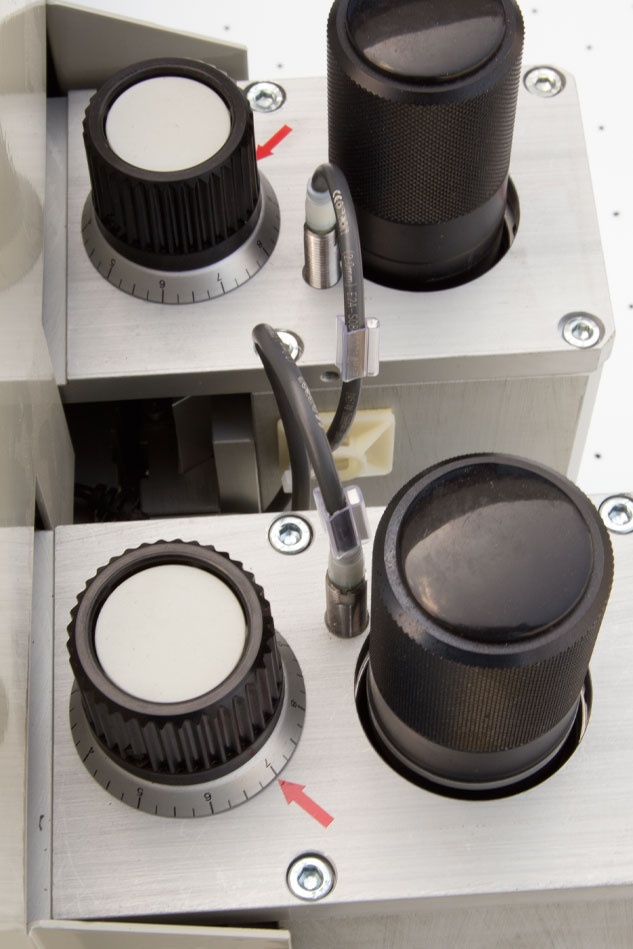

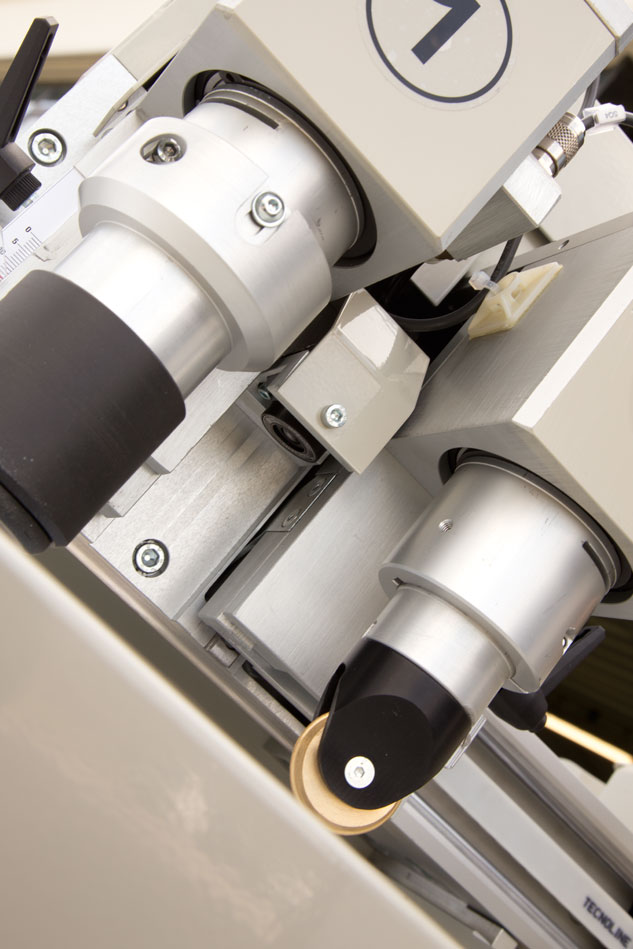

Independent twin heads can be easily adjusted to various heights depending on the blade length and type. This ensures that you achieve the highest quality and cutting precision for all materials.




dd:3

Optima V 80

Cutting Area: 1230 x 800 mm (48”x 32”)

Height: 1200mm (47.2”)

Width: 1830mm (71.6”)

Depth: 1430mm (56.2”)

Weight: 145 kg. (319 lbs)



Optima V 160

Cutting Area: 1230 x 1600 mm (48”x 63”)

Height: 1200mm (47.2”)

Width: 1830mm (72”)

Depth: 2230mm (88”)

Weight: 190 kg. (419 lbs)



General Specs

Maximum speed: 430mm (17”)/sec..

Pneumatic pressure: 6 Bar/90 PSI

Electrical requirements: Single phase 110V/60Hz/10A, 220V/50Hz/10A..

Max cutting capability: 20 mm (with oscillating tool head)
