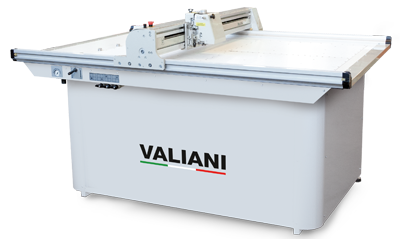

Valiani Mat Pro Ultra V AP


The Mat Pro® UltraV AP flatbed cutting plotter, with its high precision, robust, mechanics and reasonable starting price, is the answer for all applications  in the apparel Shoes and leather goods industries.  The ideal solution to cut the paper and card board patterns.



The Mat Pro® UltraV is a medium-format professional cutting plotter capable of:



Cutting 90°
Drawn and mark the patterns.



It is fitted with:

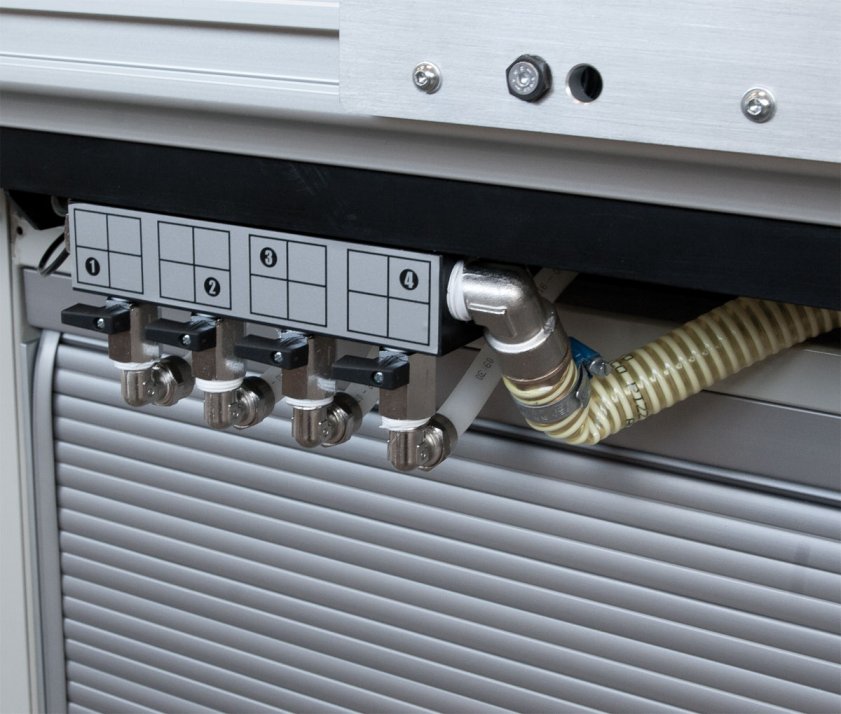

2 media hold down systems: Clamping & Vacuum.



The large vacuum table workspace, combined with a fold away pins clamping system, not only provides incomparable working flexibility over a wide range of materials but also provides the user with unparalleled accuracies to meet today's production challenges.

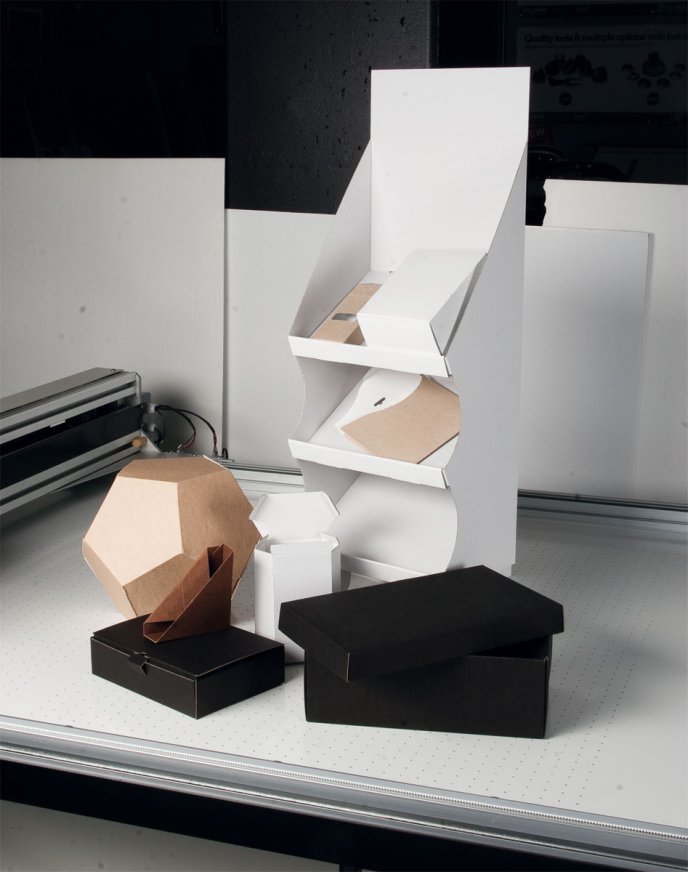

The Mat Pro® UltraV can be effectively used on a broad range of materials such as;



Tissue paper

Paper

Cardboard

Fiber Carboard

Rigid materials such as Vinyl, Forex , PVC and Polypropylene



making this machine the best solution for processing all materials which cannot be cut or fed through a roll-to-roll cutting plotter.





MAT Pro is interfacable with all the CAD systems using, through the standard HPGL, HPGL II, DXF,ISO, SVG and PLT.



The MAT Pro Ultra V AP is the ideal solution for all the pattern makers that needs to cut an huge quantity of patterns bases, saving time and costs.



With almost 40 years of experience in machinery design and construction , the Mat Pro® UltraV confirms Valiani’s leadership in building reliable and innovative equipment.





UltraV  150
Working area: 1500mm x 1000mm (60” x 40”)
Height: 850mm (33.5”)
Width: 2010mm (79.1”)
Depth: 1400mm (55.12”)
Weight: 185 kg. (382 lbs)



UltraV120
Working area: 1200mm x 800mm (60” x 40”)
Height: 850mm (33.5”)
Width: 1710 mm (67.3”)
Depth: 1200mm (47.20”)
Weight: 170 kg. (351 lbs)



General Specs
Maximum speed: 365mm(14.5”) /sec.
Pneumatic pressure: 6 Bar (90 PSI)
Electrical requirements: 110V/60Hz/10A, 220V/50Hz/10A.
Max cutting Capability: 5mm
